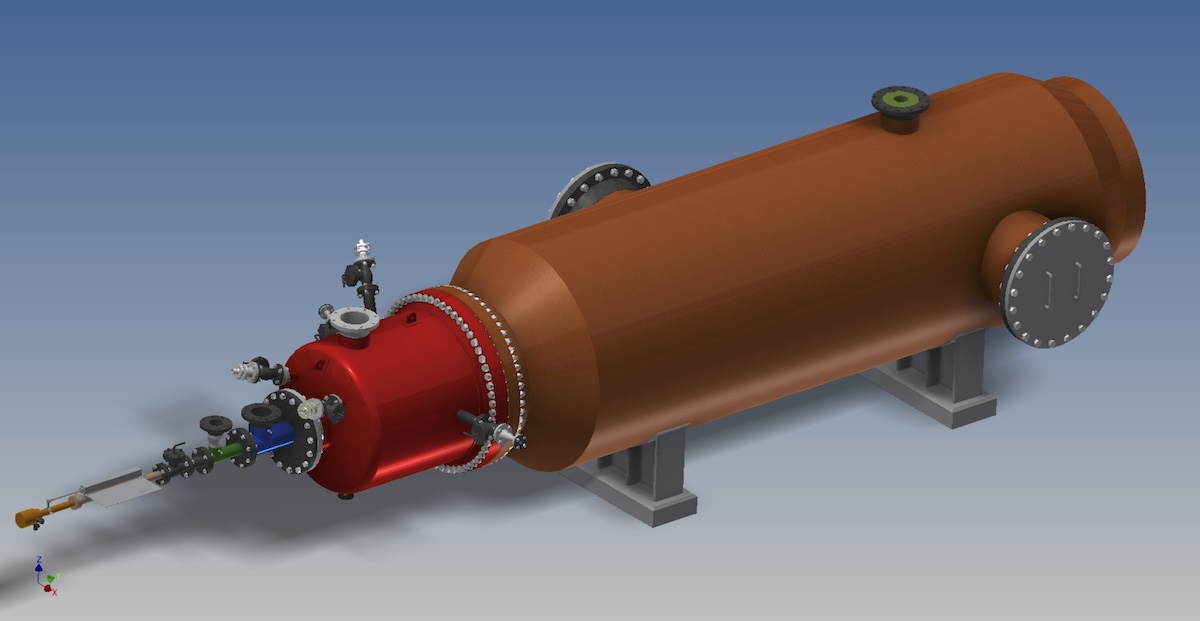

Sulphur Recovery Units (SRU’s)
A SRU incinerator is an oxidation-reduction reactor for the recovery of elemental Sulphur from H2S rich waste gases.
The first stage of the so called Claus process, is the complete free flame oxidation of typically ⅓ of the H2S to SO2 in a reaction furnace (H2S + 1½ O2 = SO2 + H2O). The SO2 and the then remaining H2S undergo the Claus reaction both in the reaction furnace and in a series of catalytic reactors (2 H2S + SO2 = 3S + 2 H2O) resulting in the overall chemical reaction H2S + ½ O2 = H2O + S.

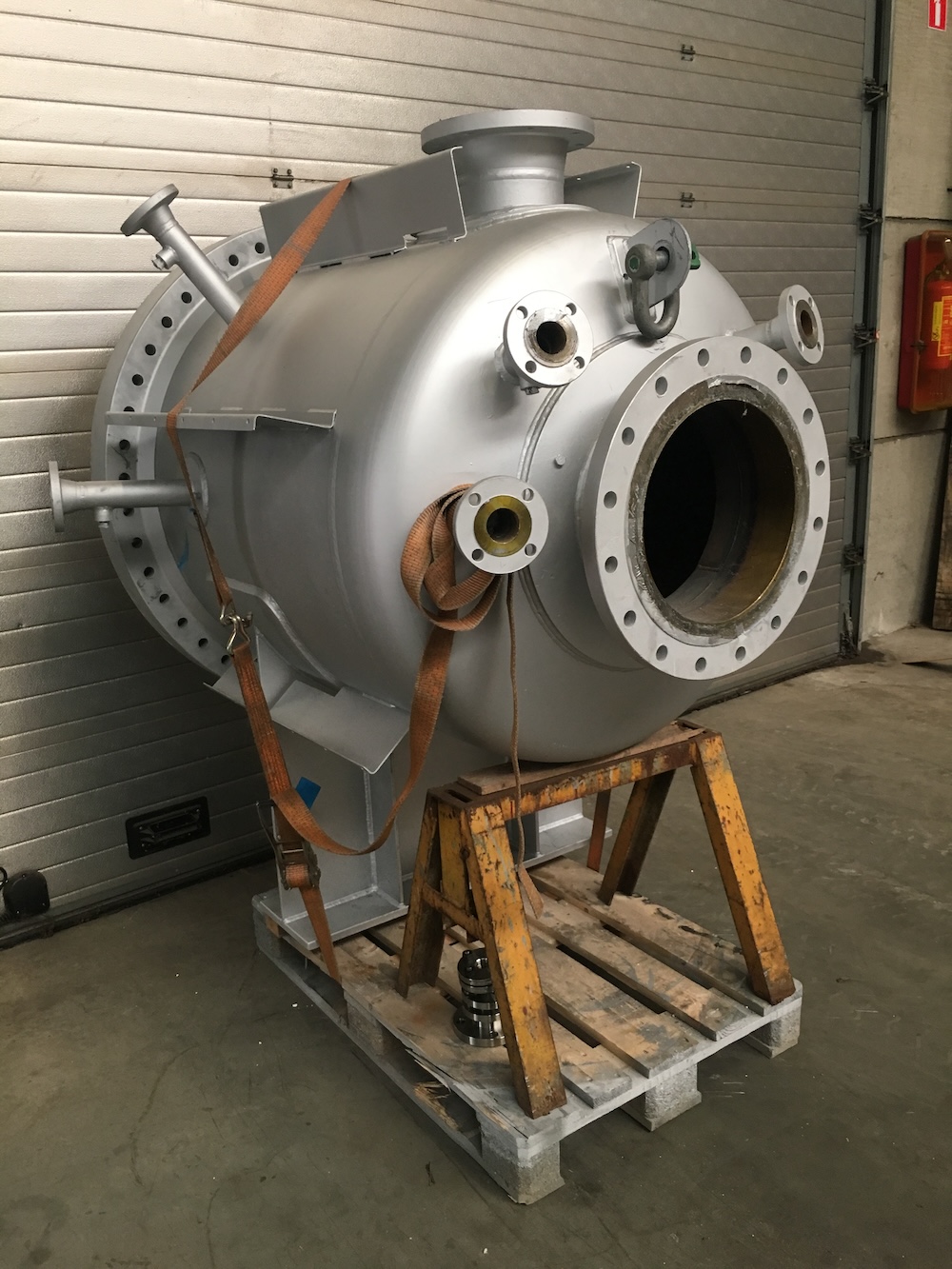

Key features
-

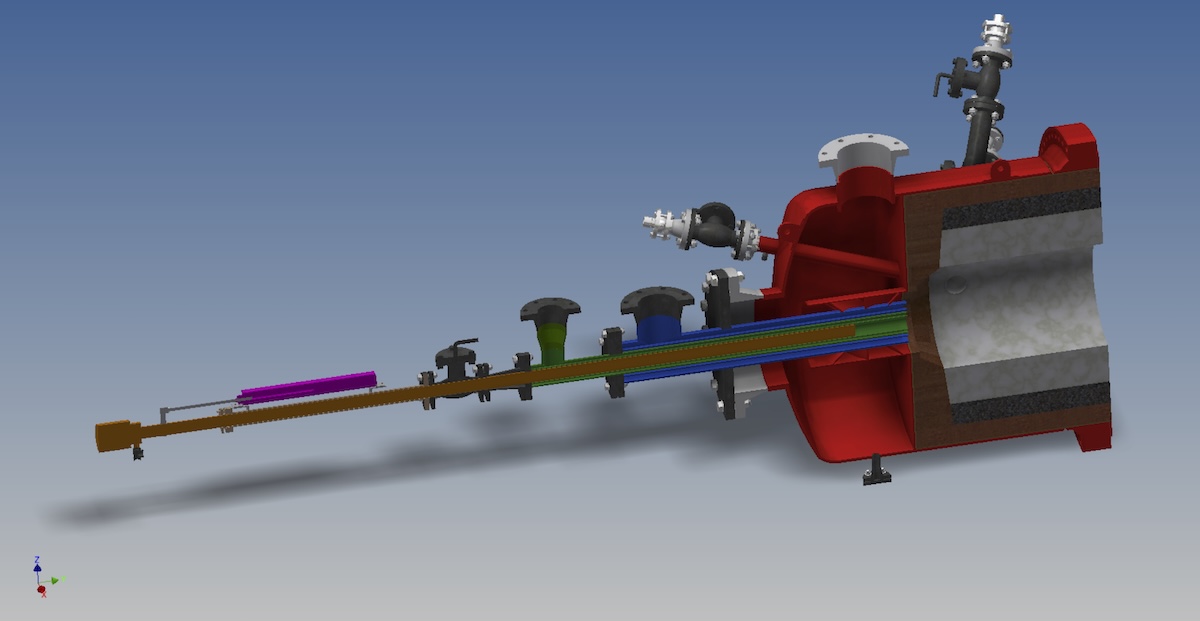

One combustion chamber with mixing wall > optimised chemistry
-
Short flame > ultra-low NOx
-
Flame contained in burner housing > economical design
-
Double swirl > high intensity mixing
-
Internal recirculation > uniform reactions
Advantages
-
Ultra-low NOx and CO (<80 and <5 mg/Nm³ resp)
-
Ultra-pure S
-
No ammonia sulphate contaminations
Key advantages
- Sulphur recovery
- Ultra low NOx combustion possible
- Complete oxidisation of all hydrocarbons
- No CO formation
- Complete odour destruction
- Destruction efficiency over 99,99%
- For waste air/gas streams containing a high percentage of H2S
